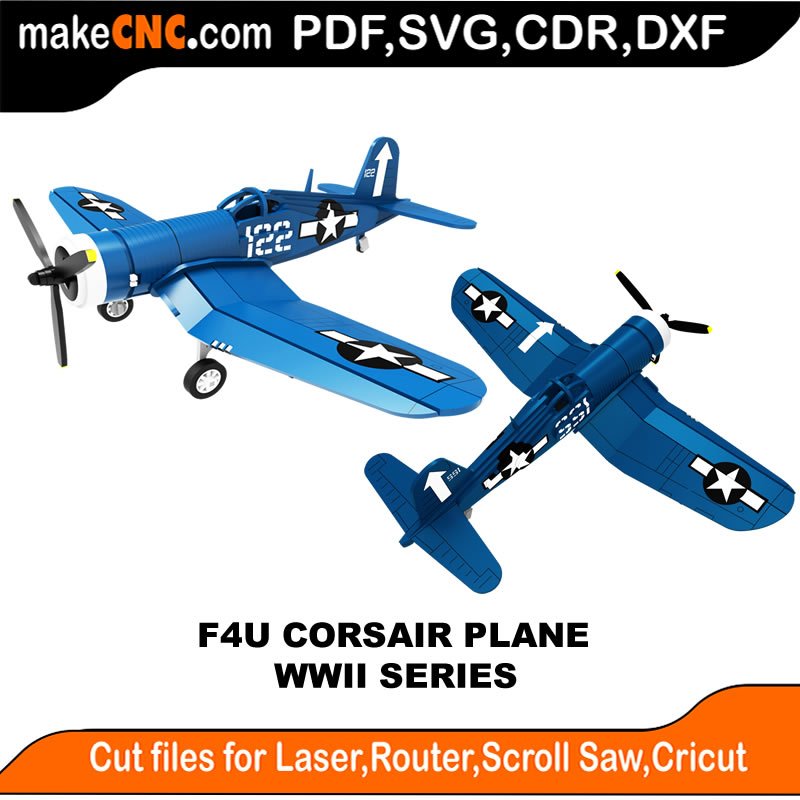

The WWII Vought F4U Corsair Plane – WWII Airplane Series : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG
$8.95
The WWII Vought F4U Corsair Plane – WWII Airplane Series: Dive into the history of World War II aviation with the F4U Corsair, renowned for its distinctive bent wing design and exceptional performance in battle. This 3D puzzle replicates the Corsair with high precision, capturing the essence of this formidable fighter plane. Designed as a laser-cut CNC template, this model offers an engaging assembly experience for WWII historians and aircraft modelers. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, available in two standard sizes, usually 1/8th (.1250) and 3mm, allowing for adjustments to suit the thickness of your material. Scaling up or down will modify the size of the completed aircraft. Please consult our Scale Calculator for assistance with scaling.
Description
PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT. NO PHYSICAL ITEM WILL BE SHIPPED !
The WWII Vought F4U Corsair Plane – WWII Airplane Series
Originally designed as a carrier-based fighter, the Corsair’s difficult handling
and landing characteristics caused the Navy to rely on the Grumman Hellcat
instead. The Marine Corps benefited from this policy change, and its land-based
units eagerly adopted the “Bent-wing Bird.” The famous Jolly Rogers, the Navy’s
VF-17, also flew the Corsair during its tour in the Solomons. Late in the war, as
the handling problems were resolved, both Marine and Navy pilots operated F4U’s
from carrier decks.
But its speed, firepower, maneuverability, and ruggedness cause many to rate it
with the Mustang as the best fighter plane of World War Two.
The Corsair appeared to be a superb fighting machine, but it was overengineered
and thus hard to maintain. At the start of a typical day’s ops, only about half
of our full complement was safe to fly. By “secure,” half of those could be
expected to be “down.”
Collect your WWII Series Pattern today! It’s definitely a Must!
Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.
Basic slot sizes (Meaning your Material Thickness)
1/8 Inch or 1/4 Inch
Metric: Slot Size (Meaning your Material Thickness)
3mm or 6mm
1 x Color Assembly Guide.
Number of Parts:
Finished size of Model at 1/8th or 1/4 Inch
Finished size of Model at 3mm or 6mm
Approximate Size at 3mm
L= 323
W = 371
H = 171
Approximate Size at 1/8 inch
L = 12.7
W = 14.6
H = 6.7
Approximate Size of Largest Part
14.7 X 2.3 inches
373 X 58 mm
Approximate Part Number: 100
NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
