The Superior F15 : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern, DXF, CDR, SVG

$4.00

PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT.  NO PHYSICAL ITEM WILL BE SHIPPED !

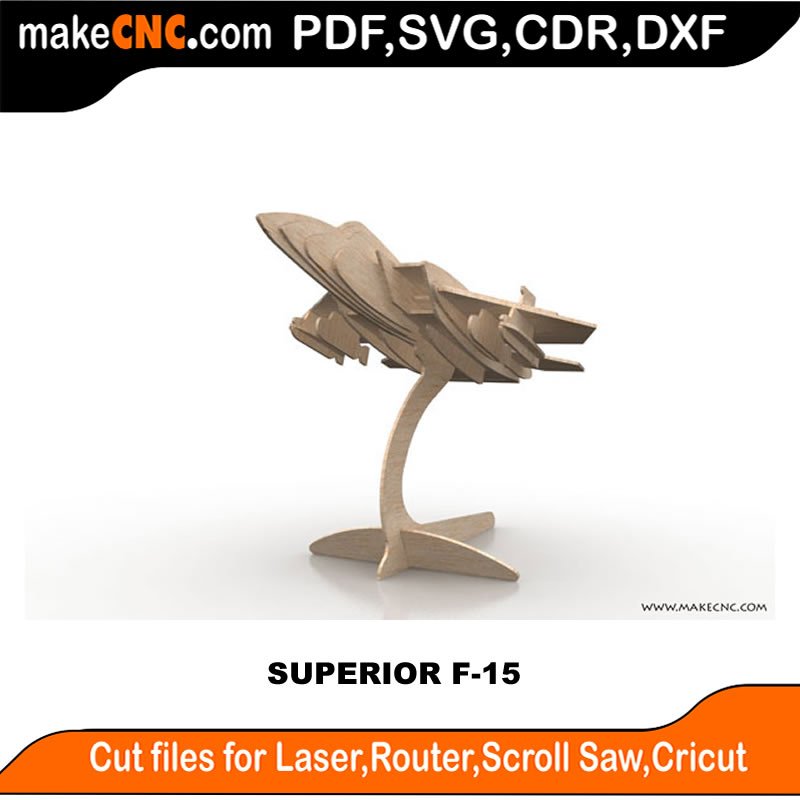

The Superior F15 :

3D Puzzle Template for Laser Cutter, CNC Router, Plasma, Die Cutter, includes PDF for Scroll Saw

included file formats SVG, DXF, CDR, PDF

Patterns are supplied in two standard sizes, usually 1/8th (.1250) and 3mm , but are Scalable Vectors, meaning you can scale the patterns up or down to suit the thickness of your material.

Please Note: Scaling up will enlarge the finished model or shrink it if you scale down. Please see our Scale Calculator to make this task simple.

Full Product Description Below:

Description

PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT.  NO PHYSICAL ITEM WILL BE SHIPPED !

The Superior F15

This aircraft can take off and land vertically.  It is also called a “Rotary aircraft”, which means it can hover
and rotate in the air and can move sideways and backwards while aloft. It can fly by means of the thrust that is
created by the rotation of the blades of a main rotor that is mounted on the shaft above the body of the
aircraft. Helicopter flight was the first flight envisioned by man. In as early as the mid 1500’s the great
Italian Leonardo Da Vinci had used his amazing mind to make drawings of a machine we now call the Helicopter.
Helicopters had its first significant impact on military operations where they fielded air-mobile infantry units,
evacuated casualties, hauled artillery and ammunition, rescued downed aviators and served as grand-attack craft.
Even now they are not only used for military but they are used for transportation, construction, search and
rescue, firefighting, motion picture photography, food transports, electronic news gathering and by the police to
catch speeders.  And, of course, the great Helicopter is used, most simply, for touring and for your personal
pleasure.  You must add one of these flying metal giants to your collection today!

Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.

They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 3mm

L= 331
W = 204
H = 216

Approximate Size at 1/8 inch

L = 13
W = 8
H = 8.5

Approximate Size of Largest Part

5.5 X 6.5 inches
140 X 166 mm

Approximate Part Number: 35

NOTE: Our 3D Puzzles can be built in different thicknesses.

Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.

As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.

PLEASE READ COPYRIGHT:

All downloadable products are copyright makecnc.com and may not be shared copied or redistributed in any format other than actual material products made from the supplied files.
Assembly PDF files may be sold as printed copies only along with a product made from the supplied files.

Unless otherwise stated in the documentation and product description you may make as many hard products as you like from your files on machine that you own only (no third party) with no royalty to the designer.

Thank You for Supporting makeCNC !
