The Cherry Picker Truck : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern, DXF, CDR, SVG



The Cherry Picker Truck :

3D Puzzle Template for Laser Cutter, CNC Router, Plasma, Die Cutter, includes PDF for Scroll Saw

included file formats SVG, DXF, CDR, PDF

Patterns are supplied in two standard sizes, usually 1/8th (.1250) and 3mm , but are Scalable Vectors, meaning you can scale the patterns up or down to suit the thickness of your material.

Please Note: Scaling up will enlarge the finished model or shrink it if you scale down. Please see our Scale Calculator to make this task simple.

Full Product Description Below:

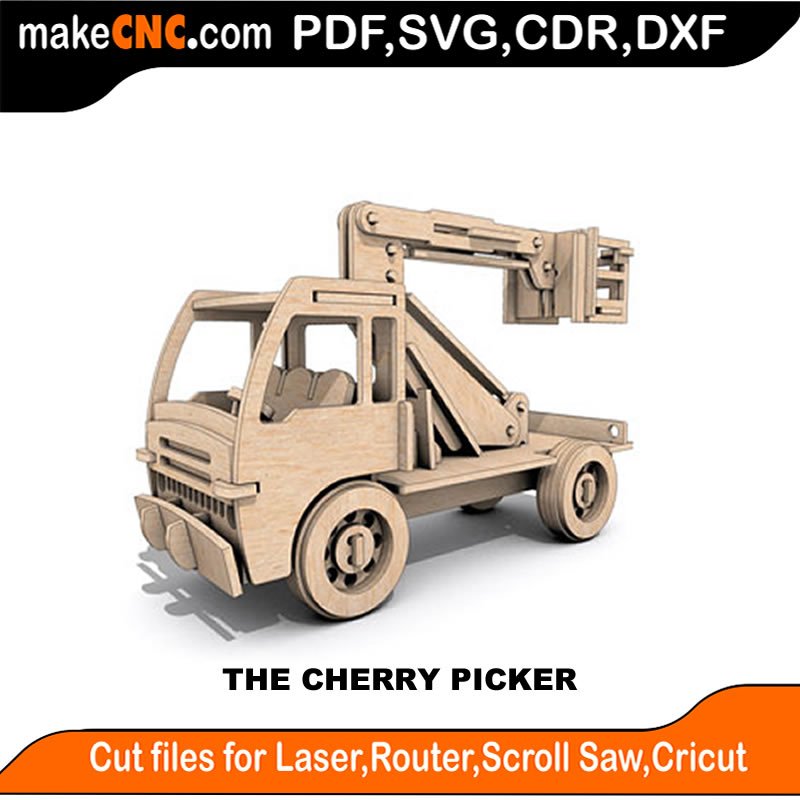

The Cherry Picker Truck

This machine is also known as a boom lift, a hydra ladder and a basket crane.  This Cherry Picker basket crane is a type of aerial work platform that consists of a platform or bucket at the end of a hydraulic lifting system.  The design of this machine allows
for it to be mounted on the back of a large vehicle such as a truck or van. The bucket is designed for a person to stand in and work from.  A duplicate set of controls can be used to manipulate the position of the bucket by the person working
in the bucket.  This allows the person to position themselves. Cherry Pickers were originally designed for use in many different types of orchards. They are still used for this type of work but are also used to service telephones, cable television and electrical equipment or telephone poles.  Many fire trucks have a Cherry Picker known as a snorkel, instead of a ladder. They are also used in window cleaning, mining and construction, exterior painting and by arborists to work safely in otherwise unclimbeable trees. They are also used in forms of entertainment videos, such as Micheal Jackson’s “Beat it” video. They’ve even been used to put up Christmas light displays and banners. This little (or big) invention is a must have for your collection today!

Hello and Thanks for shopping with makeCNC!

These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.

They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 3mm

L= 227
W = 77
H = 171

Approximate Size at 1/8 inch

L = 8.9
W = 3
H = 6.7

Approximate Size of Largest Part

8.8 X 1.4 inches
224 X 36 mm

Approximate Part Number: 86

NOTE: Our 3D Puzzles can be built in different thicknesses.

Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.

As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
