The Tip Truck or Dump Truck : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG
$4.00

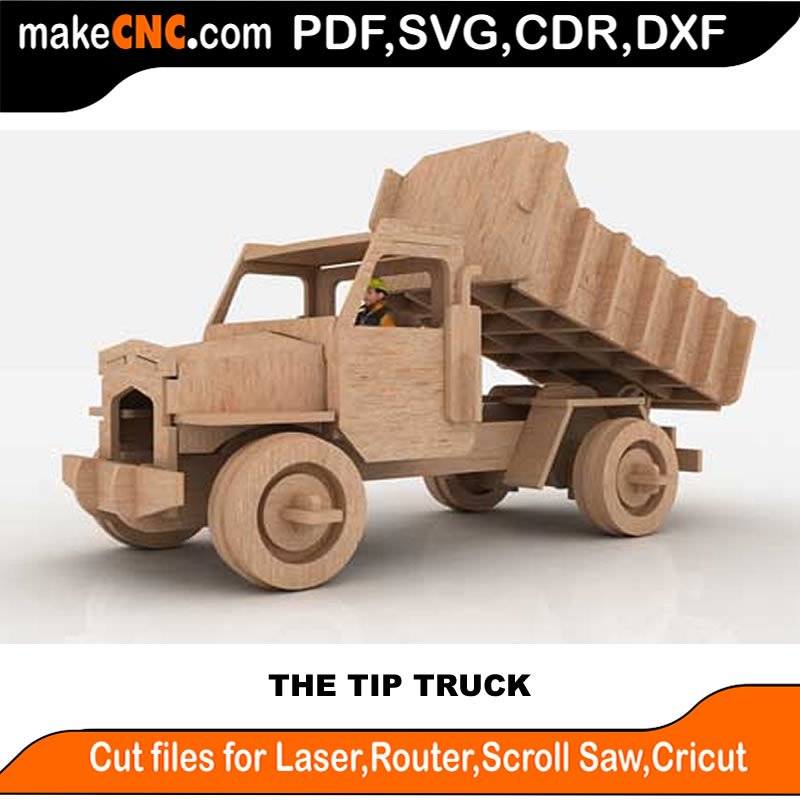

The Tip Truck or Dump Truck 3D Puzzle captures the robust and functional design of this essential construction vehicle. Designed as a laser-cut CNC template, this detailed puzzle offers a captivating and rewarding assembly experience. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, and PDF. Patterns are supplied in two standard sizes, usually 1/8th (.1250) and 3mm, but are scalable vectors, allowing you to adjust the pattern size to suit the thickness of your material. Scaling up will enlarge the finished model or shrink it if you scale down. Please see our Scale Calculator to make this task simple.
Description
PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT. NO PHYSICAL ITEM WILL BE SHIPPED !
The Tip Truck or Dump Truck
A dump truck is a truck used for transporting loose material, such as sand, gravel, or dirt for construction. A typical dump truck is equipped with a hydraulically operated open-box bed hinged at the rear, the front of which can be lifted to allow the contents to be deposited on the ground behind the truck at the site of delivery. In the UK and Australia the term applies to off-road construction plant only, and the road vehicle is known as a tipper, tipper lorry, or tip truck.
The dump truck is thought to have been first conceived in the farms of late 19th century Western Europe. As early as 1905, the first motorized dumping vehicles were developed. The first motorized dump trucks in the United States were developed by small equipment companies such as Galion Buggy Co. and Lauth-Juergens among many others around 1910.
A standard dump truck is a truck chassis with a dump body mounted to the frame. The bed is raised by a hydraulic ram mounted under the front of the dumper body between the frames, and the back of the bed is hinged at the back to the truck. The tailgate can be configured to swing on hinges or it can be configured in the “High Lift Tailgate” format wherein pneumatic rams lift the gate open and up above the dump body.
In the United States, a standard dump truck has one front axle, and one or more rear axles which typically have dual wheels on each side. Rear axles are either powered or unpowered. Most unpowered rear axles can be raised off the pavement, to minimize wear and tear when the truck is unloaded or lightly loaded, and lowered to become load-bearing when the truck needs the extra support. These are referred to as lift axles or drop axles. Lift axles can be steerable or non-steerable; steerable lift axles are always configured with single wheels on each side, instead of dual wheels. Lift axles positioned in front of the powered axles are called pushers; lift axles positioned behind the powered axles are called tags. A trailing tag is a special type of tag mounted on an arm that extends 12 to 15 feet behind the truck frame to extend the overall outer bridge length of the vehicle.
Collect your Dump Truck Today!
Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.
Basic slot sizes (Meaning your Material Thickness)
1/8 Inch or 1/4 Inch
Metric: Slot Size (Meaning your Material Thickness)
3mm or 6mm
1 x Color Assembly Guide.
Number of Parts:
Finished size of Model at 1/8th or 1/4 Inch
Finished size of Model at 3mm or 6mm
Approximate Size at 3mm
L= 262
W = 120
H = 145
Approximate Size at 1/8 inch
L = 10.3
W = 4.7
H = 5.7
Approximate Size of Largest Part
10 X 1.8 inches
254 X 46 mm
Approximate Part Number: 74
NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
