The Howitzer Tank : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG

$4.00

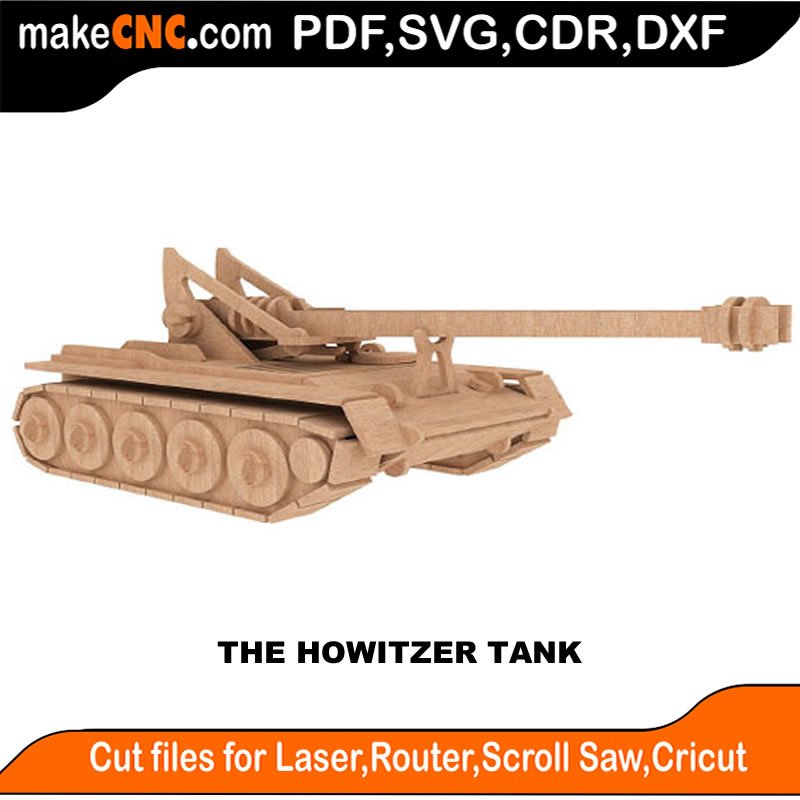

The Howitzer Tank 3D Puzzle captures the rugged design of this military vehicle in stunning detail. Designed as a laser-cut CNC template, this puzzle offers a captivating and rewarding assembly experience. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, and PDF. Patterns are supplied in two standard sizes, usually 1/8th (.1250) and 3mm, but are scalable vectors, allowing you to adjust the pattern size to suit the thickness of your material. Scaling up will enlarge the finished model or shrink it if you scale down. Please see our Scale Calculator to make this task simple.

Description

PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT.  NO PHYSICAL ITEM WILL BE SHIPPED !

The Howitzer Tank
A howitzer is a type of artillery piece characterized by a relatively short barrel and the use of comparatively small propellant charges to propel projectiles at relatively high trajectories, with a steep angle of descent. Until fairly recently, about the end of the Second World War, such weapons were characterized by a barrel length 15 to 25 times the caliber of the gun.
In the taxonomies of artillery pieces used by European and European-style armies in the 17th, 18th, 19th, and 20th centuries, the howitzer stood between the “gun” characterized by a longer barrel, larger propelling charges, smaller shells, higher velocities, and flatter trajectories and the “mortar” which was meant to fire at even higher angles of ascent and descent. Howitzers, like other artillery pieces, are usually organized in groups called batteries.
The modern howitzers were invented in Sweden towards the end of the 17th century. These were characterized by a shorter trail than other field guns meaning less stability when firing, which reduced the amount of powder that could be used. Armies using these had to rely on a greater elevation angle to achieve a given range, which gave a steeper angle of descent.

Collect your Howitzer Tank Today!

Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide.

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 3mm

L= 369
W = 158
H = 115

Approximate Size at 1/8 inch

L = 14.5
W = 6.2
H = 4.5

Approximate Size of Largest Part

3.7 X 11.3 inches
94 X 288 mm

Approximate Part Number: 148

NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
