AT-TE Star Wars Inspired Pattern :
3D Puzzle Template for Laser Cutter, CNC Router, Plasma, Die Cutter, includes PDF for Scroll Saw
included file formats SVG, DXF, CDR, PDF
Patterns are supplied in two standard sizes, usually 1/8th (.1250) and 3mm , but are Scalable Vectors, meaning you can scale the patterns up or down to suit the thickness of your material,
Please Note: Scaling up will enlarge the finished model or shrink it if you scale down. Please see our Scale Calculator to make this task simple.
Full Product Description Below:

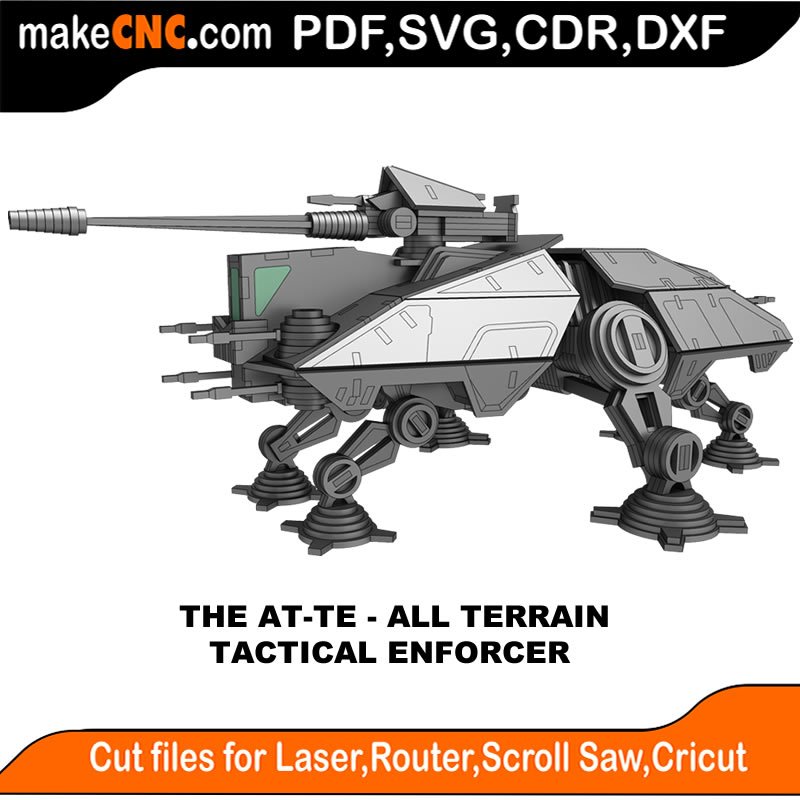

AT-TE Star Wars Inspired 3D Puzzle Pattern

The All Terrain Tactical Enforcer (AT-TE), also referred to as a tank by clone troopers, was a multipurpose military ground walker used by the Galactic Republic during the Clone Wars. They boasted six legs that could be magnetized, six laser cannon turrets located along the body of the walker, and a heavy projectile mass-driver cannon on top.
The All Terrain Tactical Enforcer was a low-built vehicle that featured six articulated legs for propulsion. Its body consisted of two armored halves that were connected by a flexible concertina section, which increased the walker’s mobility on the field. Because its legs were low to the ground, the walker had a relatively low top speed, but it also enjoyed greater stability. As its name suggests, the AT-TE was suitable for all terrains; not only was it able able to climb sheer surfaces, but it could also survive in the vacuum of real space.
Collect your AT-TE Pattern Today!

Hello and Thanks for shopping with makeCNC!

These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide.

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 3mm
L= 686
W = 287
H = 272
Approximate Size at 1/8 inch
L = 27
W = 11.3
H = 10.7
Approximate Size of Largest Part
10 X 1.4 inches
254 X 36 mm
Approximate Part Number: 402

NOTE: Our 3D Puzzles can be built in different thicknesses.

Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.

As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.


All downloadable products are copyright and may not be shared copied or redistributed in any format other than actual material products made from the supplied files.
Assembly PDF files may be sold as printed copies only along with a product made from the supplied files.

Unless otherwise stated in the documentation and product description you may make as many hard products as you like from your files on machine that you own only (no third party) with no royalty to the designer.

Thank You for Supporting makeCNC !

Special Copyright Statement: When you purchase this makeCNC pattern you are agreeing to the Copyright Terms Below.

Copyright Notice for Star Wars-Inspired Patterns

Please note: Star Wars and its characters are trademarks and copyrights of their respective holders. Our patterns are inspired by the Star Wars universe and are intended for personal, non-commercial use only. You may not manufacture or sell kits from these patterns. We provide these designs under the doctrine of fair use for private enjoyment and do not assume liability for your use of these patterns. Respect the original creators by using these patterns for personal projects only.
