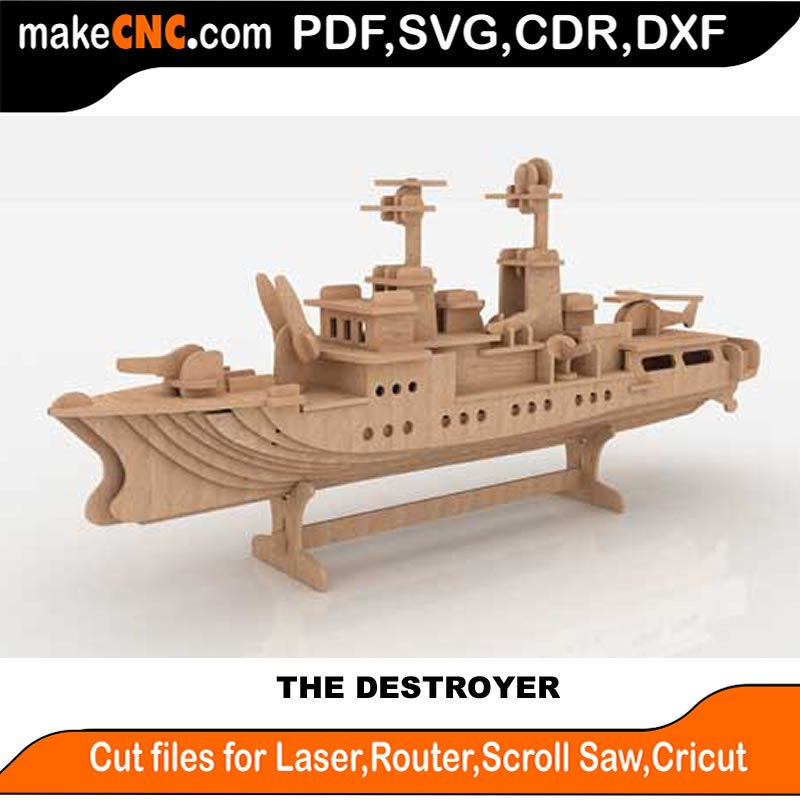

Destroyer : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG

$4.00

The Destroyer Ship 3D Puzzle captures the impressive might and detailed structure of a naval destroyer. Designed as a laser-cut CNC template, this intricate puzzle offers a captivating and rewarding assembly experience. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, and PDF. Patterns are supplied in two standard sizes, usually 1/8th (.1250) and 3mm, but are scalable vectors, allowing you to adjust the pattern size to suit the thickness of your material. Scaling up will enlarge the finished model or shrink it if you scale down. Please see our Scale Calculator to make this task simple.

Description

PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT.  NO PHYSICAL ITEM WILL BE SHIPPED !

The Destroyer

A Destroyer is a fast and maneuverable, yet long-endurance warship intended
to escort larger vessels in a fleet convoy or battle group and defend them
against smaller, powerful, short-range attackers. Destroyers originally
evolved from the response of navies to the threat posed by the Torpedo Boat.
The Destroyer was originally called a Torpedo Boat Destroyer in 1892. The
Torpedo Boat Destroyer first appeared as a distinct class of warship when HMS
Havock and HMS Hornet were commissioned into the royal navy in 1894. By the
time of the Russo-Japanese war in 1904, TBD’s were large, swift and powerfully
armed torpedo boats designed to destroy other torpedo boats. Although the
term “Destroyer” had been used interchangeably with the terms “TBD” and
Torpedo Boat Destroyer by the navies since 1892, the term Torpedo Boat
Destroyer had been generally shortened to simply “Destroyer” by nearly all
navies by the first world war. This is an admirable ship you definately
need to collect today!

Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide.

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 3mm

L= 79.375
W = 177.8
H = 41.275

Approximate Size at 1/4 inch
L = 3′ 2 1/8″
W = 7″
H = 1′ 1 5/8″

Approximate Size of Largest Part

3′ 5/8″ X 5 1/8″ Inches
76.2 X 130.175 mm

NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
