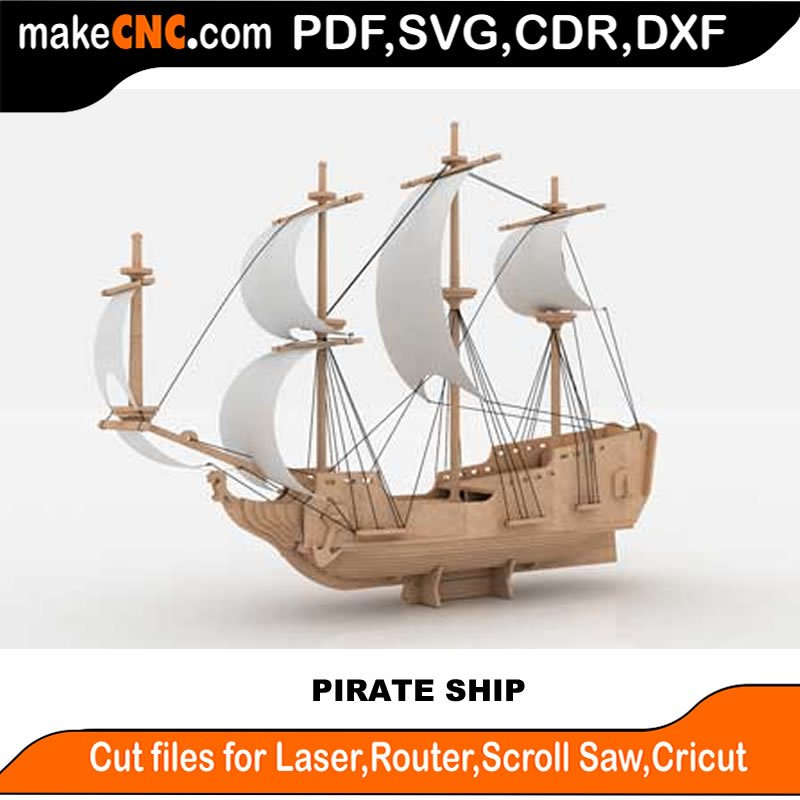

The Pirate Ship : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG

$4.00

The Pirate Ship 3D Puzzle captures the adventurous spirit of the high seas in intricate detail. Designed as a laser-cut CNC template, this puzzle offers an engaging and rewarding assembly experience. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, and PDF. Patterns are supplied in two standard sizes, usually 1/8th (.1250) and 3mm, but are scalable vectors, allowing you to adjust the pattern size to suit the thickness of your material. Scaling up will enlarge the finished model or shrink it if you scale down. Please see our Scale Calculator to make this task simple.

Description

PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT.  NO PHYSICAL ITEM WILL BE SHIPPED !

The Pirate Ship or Galleon

The Galleons were designed and developed by the Spanish during the 15th
to the 17th century. The Galleons were used as a treasure and merchant
ship as many others used in that period. Many pirates were attracted by
their large cargo so they were armed well and sometimes they had been used
as the warships. The Galleon was a large ship with an average capacity of
500 tons and had a great speed for its size. Most Galleons have 3 masts,
two square rigged with a lateen sail on the stern-most mast. Two or more
gun decks were also included with 70-100 guns. The poop deck was raised
high and a crew counted 200-400 sailors. Many people say that the Galleon was
the evolution of a caravel and was more maneuverable.
Collect your Galleon Pirate Ship today!

Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide.

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 3mm

L= 488
W = 94
H = 415

Approximate Size at 1/8 inch

L = 19.2
W = 3.7
H = 16.3

Approximate Size of Largest Part

4 X 15 inches
102 X 381 mm

Approximate Part Number: 89

NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
