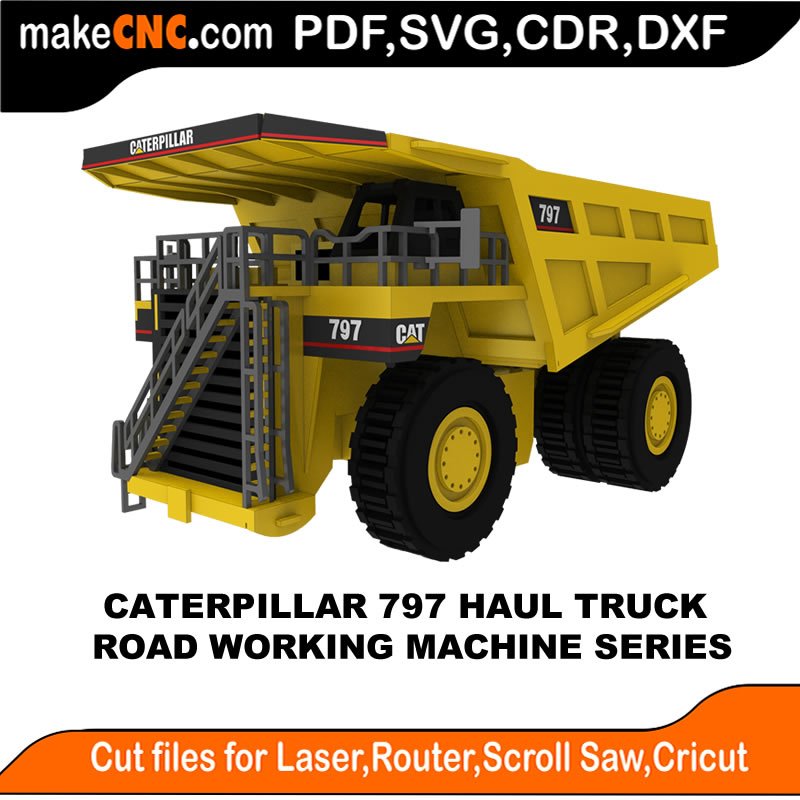

The Caterpillar 797 Haul Truck – Road Working Machine Series: Get ready to assemble the giant of the mining world, the Caterpillar 797 Haul Truck. This 3D puzzle models the 797 Haul Truck, known for being one of the largest and most powerful haul trucks in the world. Designed as a laser-cut CNC template, this model challenges construction and vehicle enthusiasts with its detailed and robust design. Ideal for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, offered in two standard sizes, usually 1/8th (.1250) and 3mm, allowing for size customization to fit the thickness of your material. Scaling up or down will adjust the size of the completed truck. Consult our Scale Calculator for precise adjustments.

Description

PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT.  NO PHYSICAL ITEM WILL BE SHIPPED !
** This Pattern is not easy for beginners! You may want to become more proficient at CNC before attempting this pattern! This is a High-Quality, Very Challenging, Premium 3D Pattern created to Stimulate your Mind and Imagination! **

The Caterpillar 797 Haul Truck – Road Working Machine Series

The Caterpillar 797 is a series of off-highway, ultra class, two-axle, mechanical powertrain haul trucks developed and manufactured in the United States by Caterpillar Inc. specifically for high-production mining and heavy-duty construction applications world-wide. In production since 1998, the 797 series represents Caterpillar’s largest, highest capacity haul trucks. The current, third-generation model, the 797F, offers one of the largest haul truck payload capacities in the world, up to 400 short tons and has the highest payload capacity among mechanical drive haul trucks.
Major components of the 797 are manufactured and assembled at seven Caterpillar or supplier facilities located throughout North America, then shipped to the customer site for final assembly by Caterpillar technicians.
The engine, frame, axles and differential requires six to seven semi-trailer truck loads, the cab requires one semi-trailer load, the six tires require two semi-trailer loads and the dump body requires four semi-trailer loads. In total, one 797 requires 12 to 13 semi-trailer truck loads that originate at various manufacturing facilities and deliver to the customer site. If a 797 must be moved from one job site to another for any reason, it can not be driven on public roads due to its exceptional size and weight. Moving a 797 requires dis-assembly, loading on to semi-trailer trucks, transport and re-assembly at the new location.
Collect your Heavy Machine Patterns today! It’s definitely a Must!

Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide.

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 3mm
L= 658
W = 399
H = 287
Approximate Size at 1/8 inch
L = 25.9
W = 15.7
H = 11.3
Approximate Size of Largest Part
10.6 X 10 inches
269 X  mm 254
Approximate Part Number: 506

NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
