Bulldozer Front End Loader : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern, DXF, CDR, SVG

$4.00

PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT.  NO PHYSICAL ITEM WILL BE SHIPPED !

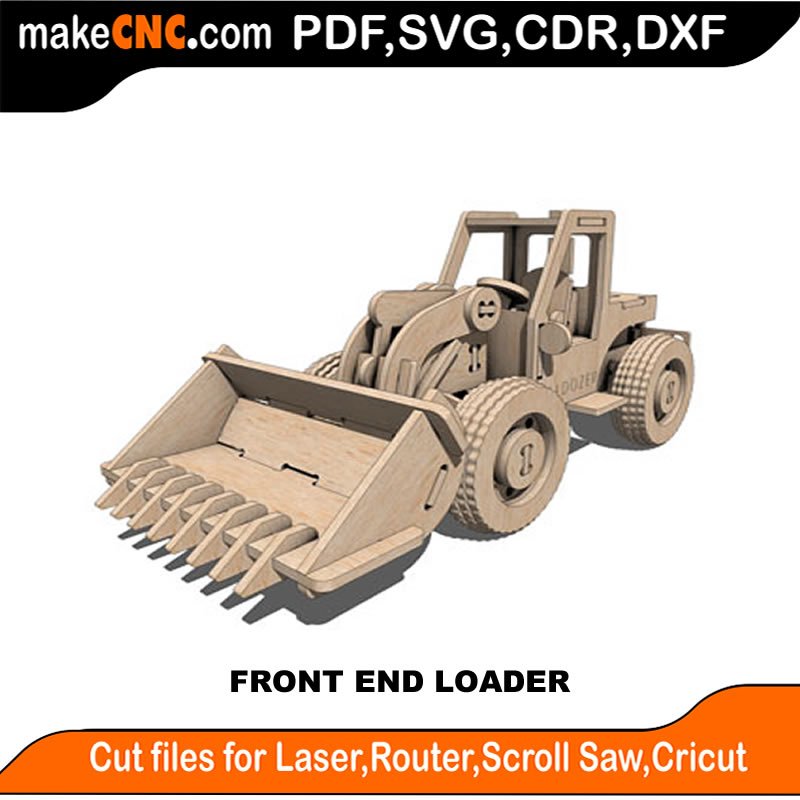

Bulldozer Front End Loader :

3D Puzzle Template for Laser Cutter, CNC Router, Plasma, Die Cutter, includes PDF for Scroll Saw

included file formats SVG, DXF, CDR, PDF

Patterns are supplied in two standard sizes, usually 1/8th (.1250) and 3mm , but are Scalable Vectors, meaning you can scale the patterns up or down to suit the thickness of your material.

Please Note: Scaling up will enlarge the finished model or shrink it if you scale down. Please see our Scale Calculator to make this task simple.

Full Product Description Below:

Description

PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT.  NO PHYSICAL ITEM WILL BE SHIPPED !

Bulldozer Front End Loader

A Front End Loader is known by many names such as bucket loader, pay loader,
scoop loader, shovel, skip loader and, of course, Front End Loader.
The Front End Loader is a type of tractor and is usually wheeled. It has
a front-mounted square wide bucket connected to the end of two booms to scoop
up loose material from the ground. Front End Loaders are used mainly for uploading
material from the ground and for uploading material into trucks, laying pipe,
digging and clearing rubble. They are also used to remove snow and for transporting
building materials in construction areas. Front End Loaders have gained huge
popularity during the last two decades, especially in urban engineering projects
and small earth moving works.  They are the “Bomb” in the construction world!
Collect your Efficient Front End Loader today!

Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.

They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 3mm

Approximate Size at 3mm

L= 254
W = 120
H = 127

Approximate Size at 1/8 inch

L = 10
W = 4.7
H = 5

Approximate Size of Largest Part

5.4 X 1.3 inches
138 X 34 mm

Approximate Part Number: 87

NOTE: Our 3D Puzzles can be built in different thicknesses.

Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.

As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
