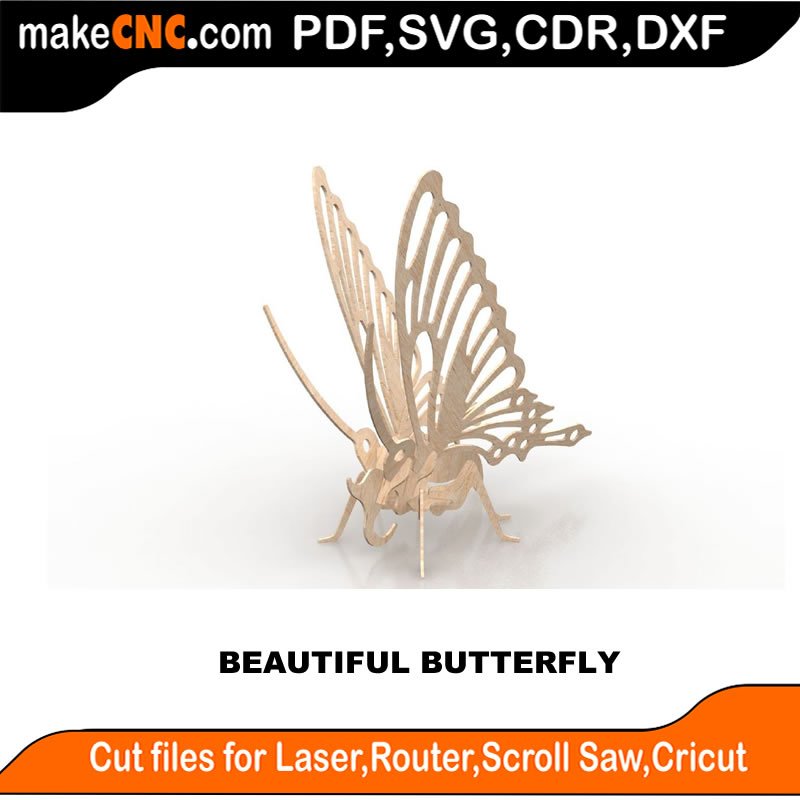

The Beautiful Butterfly Plasma Version
High Quality 3D Metal Art from makeCNC
Includes the following Sheet Steel Gauge slot size patterns in the scales from small to giant size.
DXF File Format
10,12,14 and 16 gauge Small size Model
10,12,14, and 16 gauge Medium size Model
10,12,14 and 16 gauge Large size Model
3mm,2.5mm,2mm,1.5mm Small size Model
3mm,2.5mm.2mm.1.5mm Medium size Model
3mm,2.5mm,2mm,1.5mm Large size Model
DXF File Format
All our plasma patterns come in three scale sizes and will be in the industry standard DXF file format. This is not slot sizes for thickness of material so don’t be confused. The slot sizes will start at 12 gauge imperial sheet steel size of .1046 and will go up and down from there. The same will apply as metric equivalents.
The first and smallest model size will be based on our 1/8th inch CNC router and laser patterns. Typically these patterns have parts no larger than 8.5 X 11 inches or 214 mm X 280mm at .1250 inches and the finished model is usually around 12 to 14 inches in length and height. The slots will have scales of 10,12, 14 and 16 Gauge as well as their metric sheet steel equivalents and the smallest size model will come from the 16 gauge and get larger as you go down the gauge scale.
The second size will be based on our .25 or 1/4 inch router/C02 laser patterns. These are typically twice the size of the .1250 patterns so you can double the size from 12 to 14 inch models to 24 X 28 or there about BUT this is where plasma is different than wood in that we keep our slot sizes the same as in the small scale models again being 10,12, 14 and 16 gauge and their metric equivalents.
The third size again follows the same formula as the first and second sizes but in this case is based on our .5 or half inch patterns and still uses the thinner gauge slots for sheet steel. When using this set of files be prepared to create giant Dinosaurs and creatures of all kinds. Perhaps even a Monster size Spitfire Aircraft or American Bison.
Ready to cut downloadable 3D puzzle files for your CNC plasma cutter or metal cutting laser machine in both Imperial sheet Steel gauges as well as metric sizes for the global CNC hobbyist.
Files include a full color assembly manual.
High Quality 3D Metal Art from makeCNC
Includes the following Sheet Steel Gauge slot size patterns in the scales from small to giant size.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
