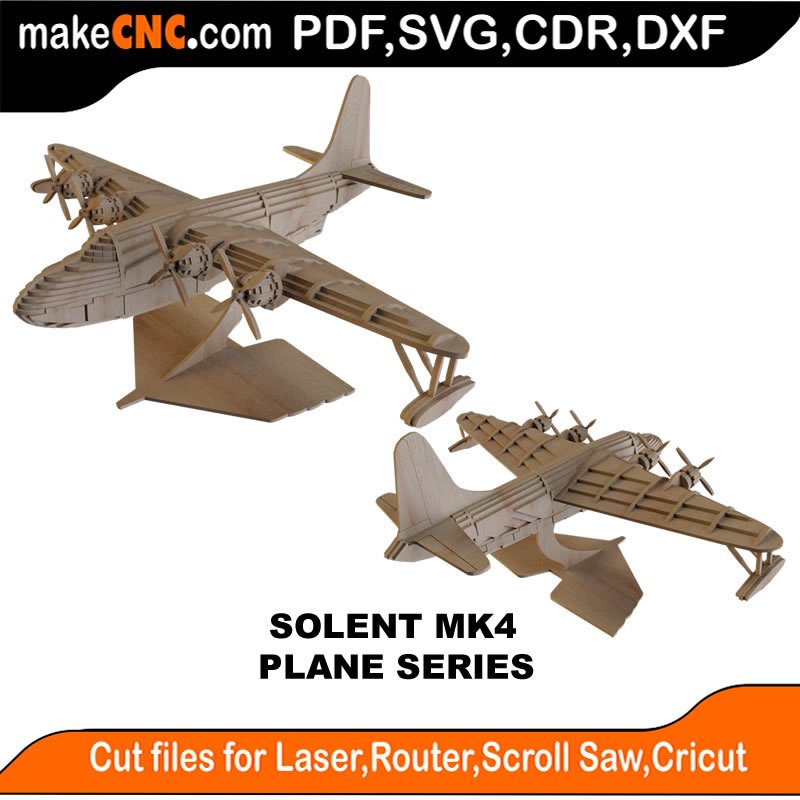

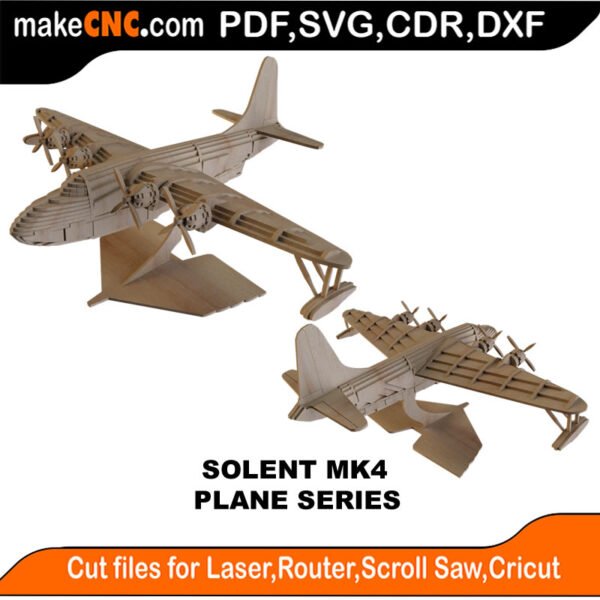

Solent Mk4 Plane – Airplane Series : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG
$8.95
Take to the skies with the Solent Mk4, a celebrated seaplane known for its robust design and historical significance in maritime aviation. This 3D puzzle accurately reproduces the classic silhouette and distinctive features of the Solent Mk4, providing an enriching assembly experience for aviation enthusiasts and model collectors. Designed as a laser-cut CNC template, this model is perfect for those who appreciate the engineering and aesthetics of vintage aircraft. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, available in two standard sizes, usually 1/8th (.1250) and 3mm, allowing for adjustments to suit the thickness of your material. Scaling up or down will change the size of the completed aircraft. Please refer to our Scale Calculator for assistance with scaling.
Description
PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT. NO PHYSICAL ITEM WILL BE SHIPPED !
Solent Mk4 Plane – Airplane Series
The Solent was a passenger flying boat produced by Short Brothers in the late 1940s. It was developed from the Short Seaford, itself a development of the Short Sunderland military flying boat design, which was too late to serve in World War II.
The first Solent flew in 1946. New Solents were used by BOAC and TEAL, production ending in 1949. Second-hand aircraft were operated until 1958 by a number of small airlines such as Aquila Airways.
The Short S.45 Solent was a high-wing monoplane flying boat of aluminium construction. Power was provided by four Bristol Hercules engines.
The aircraft could be fitted for 24 passengers with day and night accommodation or 36 day passengers. The cabins, four on the lower deck and two on the upper, could be used to sleep four or seat six. The upper deck included a lounge/dining area next to kitchen; the lower deck had two dressing rooms, toilets and three freight compartments. The flight crew was five, two pilots, navigator, and radio operator with the flight engineer in a separate compartment behind the flight deck opposite crew rest berths, and there were two stewards to attend to the passengers.
Collect your Wonderful makeCNC 3D Puzzle Project today! It’s definitely a Must!
Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.
Basic slot sizes (Meaning your Material Thickness)
1/8 Inch or 1/4 Inch
Metric: Slot Size (Meaning your Material Thickness)
3mm or 6mm
1 x Color Assembly Guide.
Number of Parts:
Finished size of Model at 1/8th or 1/4 Inch
Finished size of Model at 3mm or 6mm
Approximate Size at 3mm
L= 338
W = 455
H = 312
Approximate Size at 1/8 inch
L = 13.3
W = 17.9
H = 12.3
Approximate Size of Largest Part
13.3 X 5.5 inches
338 X 140 mm
Approximate Part Number: Â 218
NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
