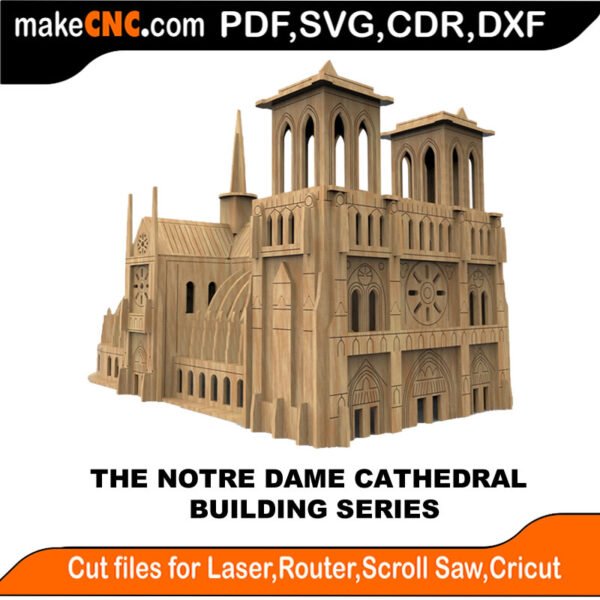

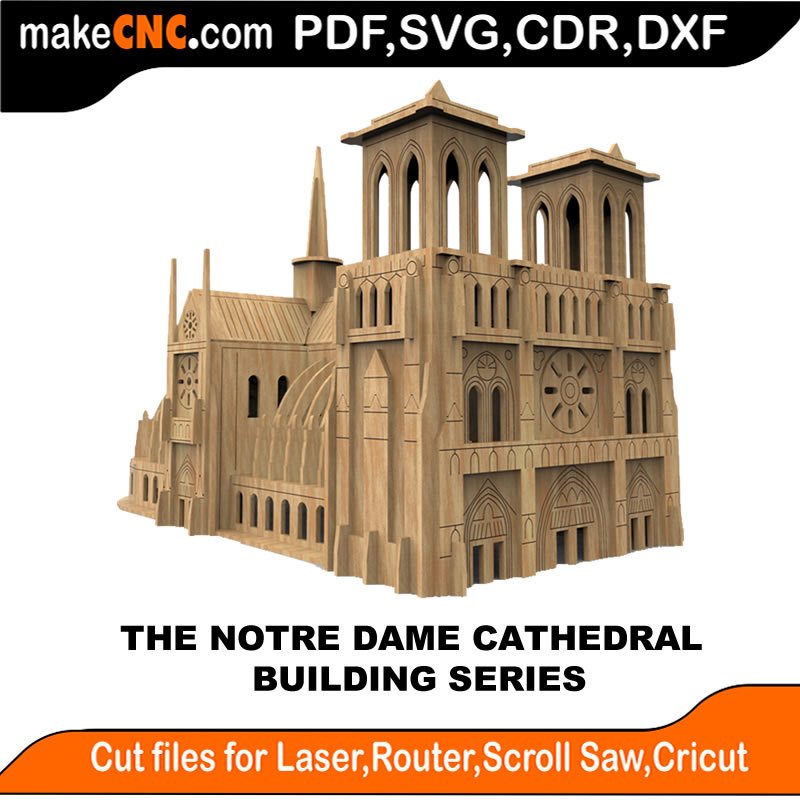

The Notre Dame Cathedral – Building Series : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG


The Notre Dame Cathedral – Building Series: Explore architectural brilliance with The Notre Dame Cathedral model from our Building Series. This 3D puzzle captures the intricate details and historical grandeur of one of the world’s most famous cathedrals. Designed as a laser-cut CNC template, this model offers a challenging and enriching assembly experience, perfect for architecture enthusiasts and model builders alike. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The pattern is scalable, provided in two standard sizes, usually 1/8th (.1250) and 3mm, allowing you to customize the size to fit your material thickness. Scaling up or down will alter the size of the finished architectural model. Please see our Scale Calculator for assistance with these adjustments.



The Notre Dame Cathedral – Building Series

Notre Dame de Paris or just Notre Dame, is a historic religious cathedral, on the
eastern half of the Île de la Cité in the fourth arrondissement of Paris, France.
Some say it is possibly the most famous of cathedrals.
Notre-Dame de Paris was among the first buildings in the world to use the flying
buttress (arched exterior supports). The building was not originally designed to
include the flying buttresses around the choir and nave but after the construction
began, the thinner walls (popularized in the Gothic style) grew ever higher and
stress fractures began to occur as the walls pushed outward. In response, the
cathedral’s architects built supports around the outside walls, and later
additions continued the pattern.
Many small individually crafted statues were placed around the outside to serve as
column supports and water spouts. Among these are the famous gargoyles, designed
for water run-off, and chimeras. The statues were originally colored as was most
of the exterior. The paint has worn off, but the gray stone was once covered with
vivid colors. The cathedral was essentially complete by 1345. The cathedral has a
narrow climb of 387 steps at the top of several spiral staircases. Along the climb
it is possible to view its most famous bell and its gargoyles in close quarters,
as well as having a spectacular view across Paris when reaching the top. The
design of St. Peter’s Anglican Cathedral in Adelaide, Australia was inspired by
Notre-Dame de Paris.
Collect your Notre Dame Cathedral Today!

Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide.

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 6mm

L= 787
W = 508
H = 838
Approximate Size at 1/4 inch
L = 31
W = 20
H = 33
Approximate Size of Largest Part
27 X 3.5 inches
686 X 89 mm

NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
