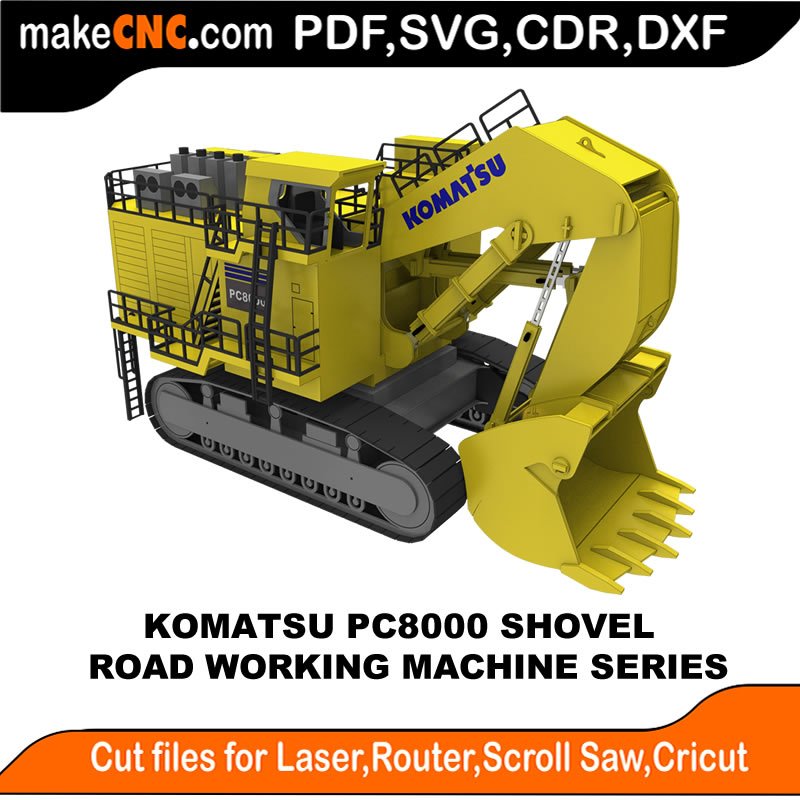

The Komatsu PC8000 Shovel – Road Working Machine Series : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG
$8.95
The Komatsu PC8000 Shovel – Road Working Machine Series: Engage with the behemoth of mining technology, the Komatsu PC8000 Shovel. This 3D puzzle perfectly captures the massive scale and robust engineering of one of the world’s largest hydraulic mining shovels. Designed as a laser-cut CNC template, this model challenges construction and machinery enthusiasts with its intricate assembly process. Ideal for use with laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, offered in two standard sizes, usually 1/8th (.1250) and 3mm, which allows for size adjustment to match the thickness of your material. Scaling up or down will change the dimensions of the completed model. Consult our Scale Calculator for detailed scaling help.
Description
PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT. NO PHYSICAL ITEM WILL BE SHIPPED !
** This Pattern is not easy for beginners! You may want to become more proficient at CNC before attempting this pattern! This is a High-Quality, Very Challenging, Premium 3D Pattern created to Stimulate your Mind and Imagination! **
The Komatsu PC8000 Shovel – Road Working Machine Series
Building on the technology and expertise Komatsu has accumulated since establishment, GALEO presents customers worldwide with a strong, distinctive image of technological innovation and value. Designed for high productivity, safety and environmental considerations, GALEO machines reflect Komatsu´s commitment to contributing to the creation of a better world.
Two 2010 hp diesel engines or, if you’d rather use electricity, two 1450 kW electric motors provide power for the massive hydraulic PC8000-6. In the shovel configuration, all hydraulic cylinders are mounted under the shovel attachment for protection from falling material. Whether in shovel or backhoe configuration, the PC8000-6 is a high production truck loading system that will out cycle rope shovels and load trucks from 240 ton and higher.
Collect your Heavy Machine Patterns today! It’s definitely a Must!
Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.
Basic slot sizes (Meaning your Material Thickness)
1/8 Inch or 1/4 Inch
Metric: Slot Size (Meaning your Material Thickness)
3mm or 6mm
1 x Color Assembly Guide.
Number of Parts:
Finished size of Model at 1/8th or 1/4 Inch
Finished size of Model at 3mm or 6mm
Approximate Size at 3mm
L= 1024
W = 363
H = 526
Approximate Size at 1/8 inch
L = 40.3
W = 14.3
H = 20.7
Approximate Size of Largest Part
19.5 X 9.4 inches
495 X 239 mm
Approximate Part Number: 367
NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
