The Hitachi EX2500 Excavator – Road Working Machine Series : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG
$9.95
The Hitachi EX2500 Excavator – Road Working Machine Series: Delve into the capabilities of the Hitachi EX2500 Excavator, a titan in the world of construction and mining. This 3D puzzle captures the robustness and detailed engineering of one of the most powerful excavators used in heavy-duty digging and mining tasks. Designed as a laser-cut CNC template, this model offers a detailed and engaging assembly experience for fans of large construction vehicles. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, available in two standard sizes, usually 1/8th (.1250) and 3mm, allowing you to adjust the pattern size to suit the thickness of your material. Scaling up or down will modify the size of the completed excavator. Use our Scale Calculator for precise adjustments.
Description
PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT. NO PHYSICAL ITEM WILL BE SHIPPED !
** This Pattern is not easy for beginners! You may want to become more proficient at CNC before attempting this pattern! This is a High-Quality, Very Challenging, Premium 3D Pattern created to Stimulate your Mind and Imagination! **

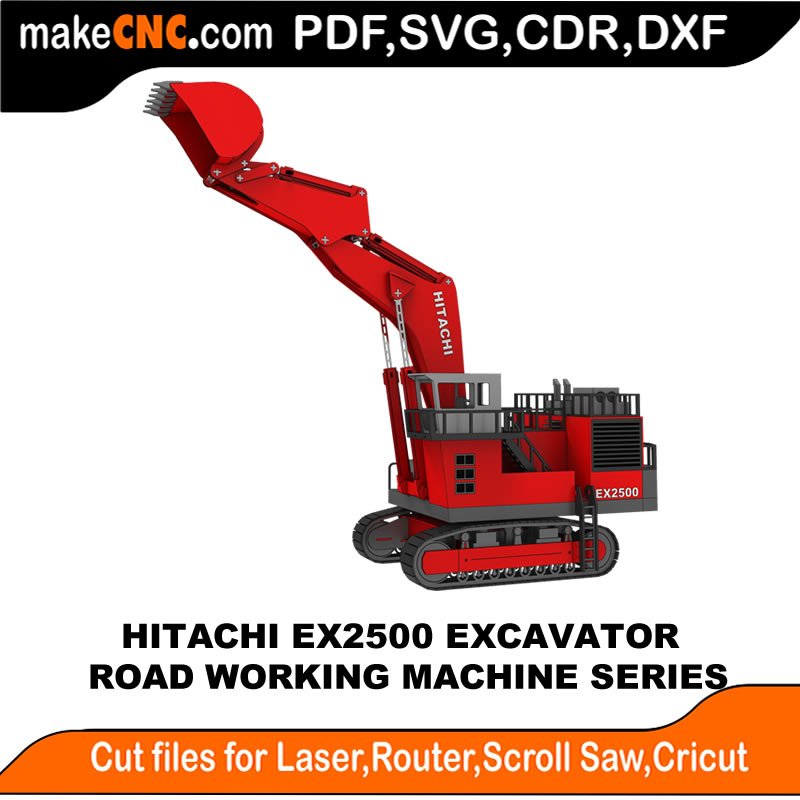

The Hitachi EX2500 Excavator – Road Working Machine Series
For the big Jobs, rely on Hitachi. With years of experience at the coal face, Hitachi are recognised as making productive and reliable large mining excavators capable of operating efficiently for tens of thousands of hours, almost non-stop.
Each Hitachi generation listens to the needs of the work site and gives birth to an even-better new generation, and the EX-6 series of Giant Excavators is no exception. The EX2500-6 is powered by a single engine. The time-proven Cummins diesel engine produces a total of 1 086 HP for handling the big excavation jobs, whilst complying with U.S. EPA Tier II emission regulations.
The EX-6 series also boasts Hitachi’s computer-aided Engine-Pump Control which coaxes optimum efficiency from the engine and hydraulic pumps. This innovative system senses load demand and controls engine and pump output for maximum operating efficiency. The large bucket has been shaped specifically to enhance scooping and loading operations. Its sharp tilt angle also helps boost operating efficiency.
The EX-6 also promotes an improved operating environment. Comfortable work stations with ergonomically positioned controls, simplified maintenance and new Hitachi technologies means the EX-6 series gets giant sized jobs done fast!!!
Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.
Basic slot sizes (Meaning your Material Thickness)
1/8 Inch or 1/4 Inch
Metric: Slot Size (Meaning your Material Thickness)
3mm or 6mm
1 x Color Assembly Guide.
Number of Parts:
Finished size of Model at 1/8th or 1/4 Inch
Finished size of Model at 3mm or 6mm
Approximate Size at 3mm
L= 490
W = 272
H = 846
Approximate Size at 1/8 inch
L = 19.3
W = 10.7
H = 33.3
Approximate Size of Largest Part
16.7 X 8.8 inches
424 X 224 mm
Approximate Part Number: 275
NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
