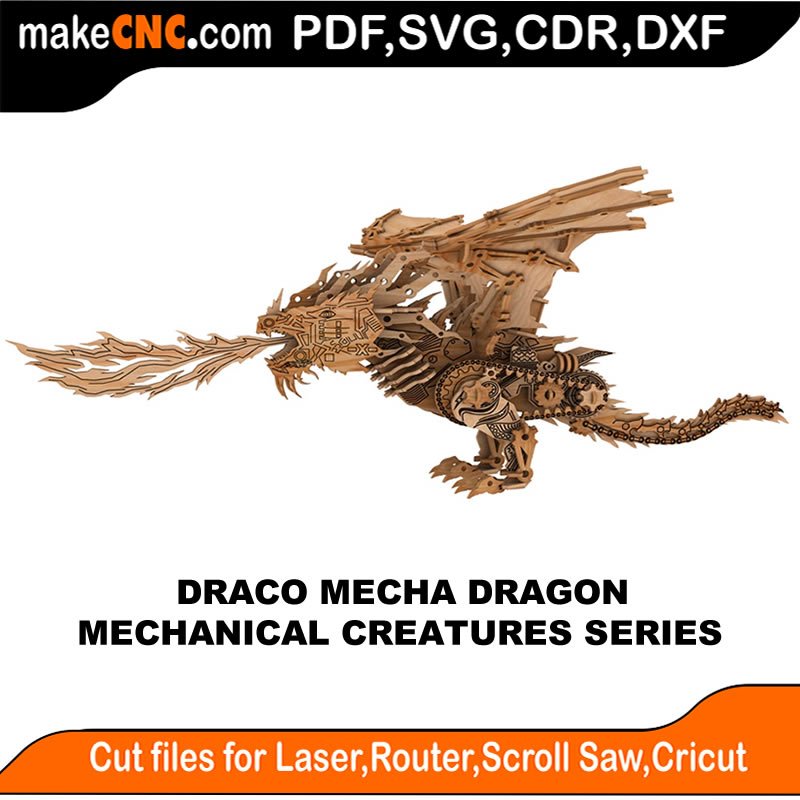

Draco Meca the Mechanical Dragon : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG


Draco Meca the Mechanical Dragon 3D Puzzle unleashes the mythical power of dragons in a mechanical rendition. This puzzle is expertly designed as a laser-cut CNC template, offering a fascinating and challenging assembly experience. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The patterns are provided in two standard sizes, usually 1/8th (.1250) and 3mm, but are scalable vectors, allowing you to adjust the pattern size to match the material thickness. Scaling up will increase the finished model or decrease it if you scale down. Please see our Scale Calculator to simplify this task.



Draco Meca the Mechanical Dragon

Draco Meca, the Mechanical Dragon, stands as a marvel of both engineering and fantasy, embodying the mythical allure of dragons in a modern, technological form. With its imposing stature, intricately designed scales, and fierce demeanor, Draco Meca captivates onlookers with its lifelike movements and awe-inspiring presence. This robotic masterpiece blends the ancient legends of dragons with cutting-edge robotics, showcasing the ingenuity and creativity of its creators. Fun facts about Draco Meca include its ability to breathe simulated fire and emit realistic roars, adding to the mystique and excitement of its performances. Additionally, Draco Meca serves as a symbol of power and strength, inspiring wonder and imagination in audiences of all ages. As a testament to human innovation and storytelling, Draco Meca the Mechanical Dragon continues to enthrall and amaze wherever it spreads its wings.

Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide.

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 3mm
L= 557
W = 312
H = 348
Approximate Size at 1/8 inch
L = 22.7
W = 12.3
H = 13.7
Approximate Largest Part
10.5 X 6 inches
267 mm 152 mm
Approximate Part Number: 105

NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
