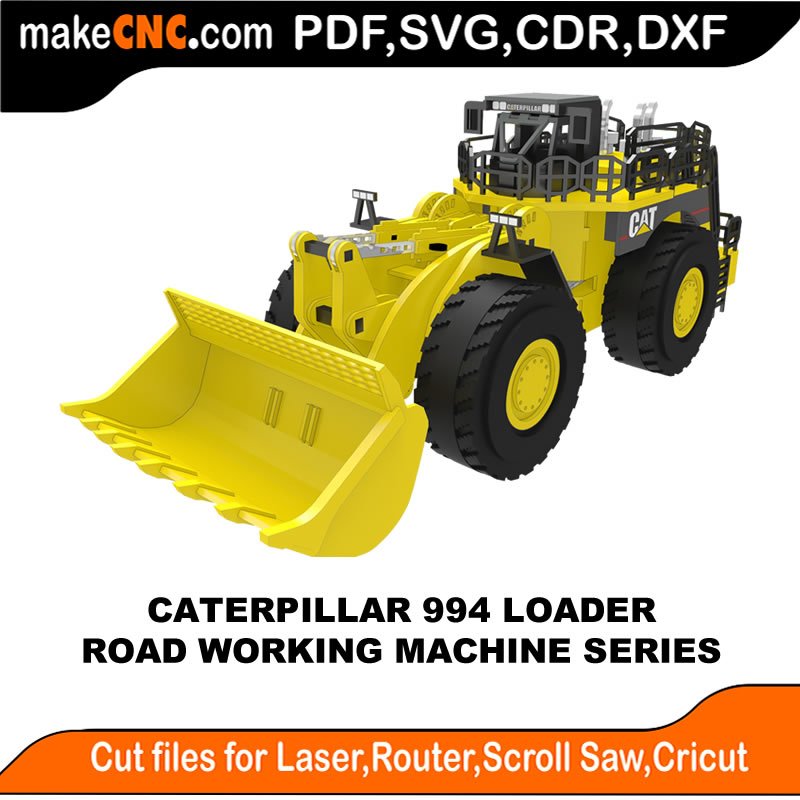

The Caterpillar 994 Loader – Road Working Machine Series : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG
$9.95
The Caterpillar 994 Loader – Road Working Machine Series: Explore the capabilities of the Caterpillar 994 Loader, one of the largest wheel loaders in the world. This 3D puzzle brings to life the immense power and efficiency of the 994 Loader, renowned for its ability to handle massive loads in mining and quarry operations. Designed as a laser-cut CNC template, this model offers a highly detailed and immersive assembly experience for construction and mining machinery enthusiasts. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, available in two standard sizes, usually 1/8th (.1250) and 3mm, making it adaptable to the thickness of your material. Scaling up or down will adjust the size of the completed loader. Refer to our Scale Calculator for precise scaling.
Description
PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT. NO PHYSICAL ITEM WILL BE SHIPPED !
** This Pattern is not easy for beginners! You may want to become more proficient at CNC before attempting this pattern! This is a High-Quality, Very Challenging, Premium 3D Pattern created to Stimulate your Mind and Imagination! **
The Caterpillar 994 Loader – Road Working Machine Series
The 431,000-lb. 994H features four loader linkage configurations that enable dump clearances at maximum lift ranging up to 23.3 ft. Cat’s Rimpull Control System allows the operator to adjust power at the wheels to match specific loading or underfoot conditions, modulating rimpull from 100 to 25 percent and reducing tire slippage without diminishing hydraulic capacity.
Its capacity for Payloads ranges from 35 to 38 tons.
The 994 Loaders Bucket ranges in capacity from 19.5 to 47 cubic yards.
It Optimally matched to Cat 785, 789 and 793 mining trucks and has
Solid-steel lift arms that work though a Z-bar linkage.
It has a 1,463-net-hp Cat 3516B HD engine and has
Planetary powershift transmission. Amazing Machine!!!
Collect your Heavy Machine Patterns today! It’s definitely a Must!
Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.
Basic slot sizes (Meaning your Material Thickness)
1/8 Inch or 1/4 Inch
Metric: Slot Size (Meaning your Material Thickness)
3mm or 6mm
1 x Color Assembly Guide.
Number of Parts:
Finished size of Model at 1/8th or 1/4 Inch
Finished size of Model at 3mm or 6mm
Approximate Size at 3mm
L= 328
W = 211
H = 201
Approximate Size at 1/8 inch
L = 12.9
W = 8.3
H = 7.9
Approximate Size of Largest Part
11 X 6.5 inches
279 X 165 mm
Approximate Part Number: Â 340
NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
