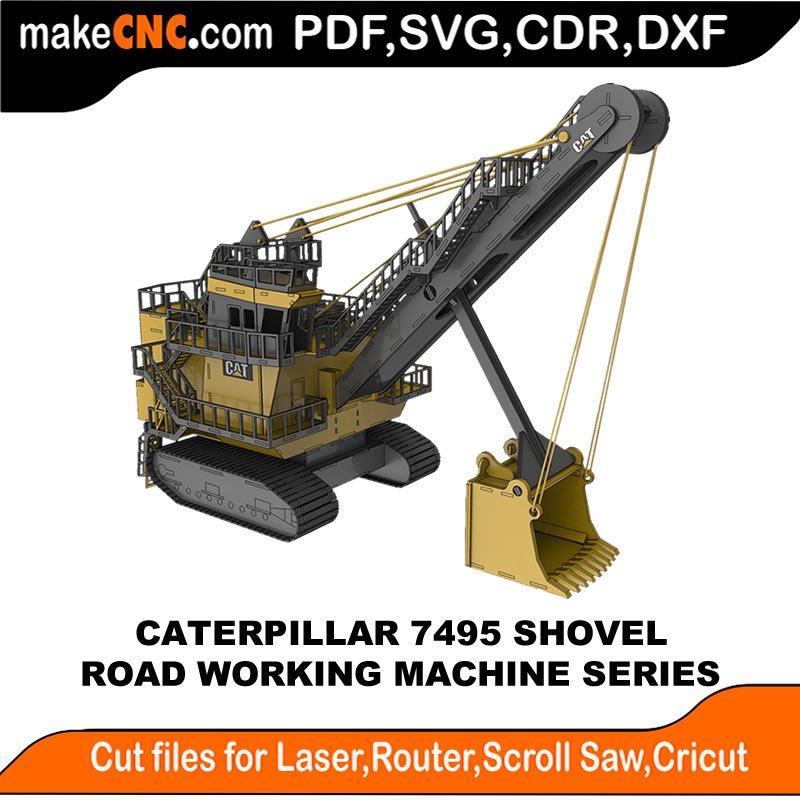

The Caterpillar 7495 Shovel – Road Working Machine Series : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG
$9.95
The Caterpillar 7495 Shovel – Road Working Machine Series: Delve into the mechanics of one of the most powerful electric rope shovels in the mining industry, the Caterpillar 7495. This 3D puzzle captures the formidable structure and advanced functionality of the 7495 Shovel, known for its high efficiency and massive digging capacity. Designed as a laser-cut CNC template, this model is a superb challenge for enthusiasts of large-scale mining equipment. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, offered in two standard sizes, usually 1/8th (.1250) and 3mm, allowing precise adjustments to suit the thickness of your material. Scaling up or down will change the overall size of the finished model. Use our Scale Calculator for accurate scaling.
Description
PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT. NO PHYSICAL ITEM WILL BE SHIPPED !
** This Pattern is not easy for beginners! You may want to become more proficient at CNC before attempting this pattern! This is a High-Quality, Very Challenging, Premium 3D Pattern created to Stimulate your Mind and Imagination! **
The Caterpillar 7495 Shovel – Road Working Machine Series
A power shovel, also stripping shovel or front shovel or electric mining shovel, is a bucket-equipped machine, usually electrically powered, used for digging and loading earth or fragmented rock and for mineral extraction.
Shovels normally consist of a revolving deck with a power plant, driving and controlling mechanisms, usually a counterweight, and a front attachment, such as a crane or boom which supports a handle or dipper stick with a digger or bucket at the end. “Dipper” is also sometimes used to refer to the handle and digger combined. The machinery is mounted on a base platform with tracks or wheels.
Power shovels are used principally for excavation and removal of overburden in open-cut mining operations, though it may include loading of minerals, such as coal. They are the modern equivalent of steam shovels, and operate in a similar fashion.
Collect your Heavy Machine Patterns today! It’s definitely a Must!
Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.
Basic slot sizes (Meaning your Material Thickness)
1/8 Inch or 1/4 Inch
Metric: Slot Size (Meaning your Material Thickness)
3mm or 6mm
1 x Color Assembly Guide.
Number of Parts:
Finished size of Model at 1/8th or 1/4 Inch
Finished size of Model at 3mm or 6mm
Approximate Size at 3mm
L= 686
W = 432
H = 686
Approximate Size at 1/8 inch
L = 27
W = 17
H = 27
Approximate Size of Largest Part
15 X 13 inches
381 X 330 mm
Approximate Part Number: 322
NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
Copyright Policy
Respect Intellectual Property: At makeCNC, each of our digital patterns is a result of creativity and hard work. Unauthorized sharing, copying, or redistribution of our products not only violates legal boundaries but seriously impacts our community and ability to continue delivering new designs.
Current Policy: All downloadable products are copyrighted by makeCNC. Redistribution of these files in any format, other than material products made from the files, is strictly prohibited. Assembly PDFs can be sold as printed copies only alongside a finished product from the files.
Personal Use and Fair Use: You are encouraged to use our files to create as many physical items as you desire on your own machines. However, these rights are limited to personal use, not for third-party manufacturing.
Combat Piracy: We lose a significant portion of our annual income to piracy. You can help us by not participating in or encouraging the sharing or selling of our files. If you encounter makeCNC files being misused, please report them to us directly.
Legal Consequences: Engaging in piracy or unauthorized distribution of our files is not only damaging to makeCNC but is also a punishable offense under the law.
Thank You for Your Support: By adhering to this policy, you help makeCNC continue to thrive and innovate. We appreciate your understanding and cooperation.
