The Sydney Harbour Bridge – Building Series : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG
$9.95

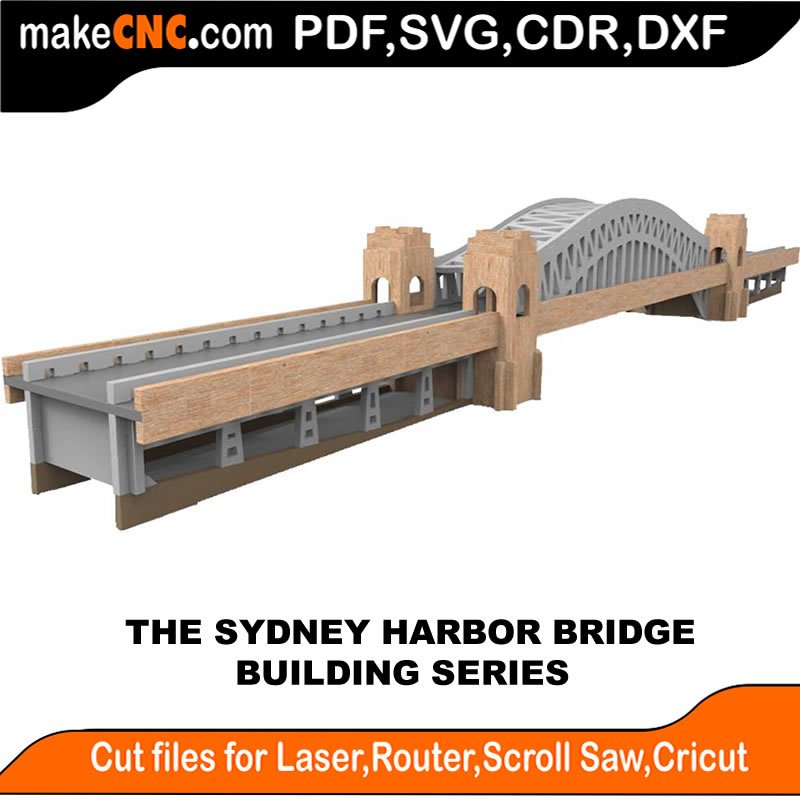

The Sydney Harbour Bridge – Building Series: Dive into the architectural beauty of one of Australia’s most famous landmarks with The Sydney Harbour Bridge model from our Building Series. This 3D puzzle meticulously recreates the iconic bridge, known for its stunning arch and practical elegance. Crafted as a laser-cut CNC template, this model offers a hands-on building experience that’s both educational and enjoyable, perfect for architecture enthusiasts and model builders. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, available in standard sizes, usually 1/8th (.1250) and 3mm, which allows for adjustments to fit the thickness of your material. Scaling up or down will modify the size of the completed architectural model. Please refer to our Scale Calculator for help with these adjustments.
Description
PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT. NO PHYSICAL ITEM WILL BE SHIPPED !
The Sydney Harbour Bridge – Building Series
The Sydney Harbour Bridge is a steel through arch bridge across Sydney Harbour
that carries rail, vehicular, bicycle and pedestrian traffic between the Sydney
central business district and the North Shore. The dramatic view of the bridge,
the harbour, and the nearby Sydney Opera House is an iconic image of Sydney, and
Australia. The bridge is nicknamed “The Coathanger” because of its arch-based
design. Furthermore, the bridge is ubiquitously known to Sydneysiders and
Australians more widely, simply as “the Bridge”.
Under the directions of Queenslander Dr J.J.C. Bradfield of the NSW Department of
Public Works, the bridge was designed and built by British firm Dorman Long and Co
Ltd of Middlesbrough and opened in 1932. The bridge’s design was influenced by the
Hell Gate Bridge in New York. It is also the sixth longest spanning-arch bridge in
the world, and it is the tallest steel arch bridge, measuring 134 m (440 ft) from
top to water level. It was also the world’s widest long-span bridge, at 48.8 m
(160 ft) wide, until construction of the new Port Mann Bridge in Vancouver.
The southern end of the bridge is located at Millers Point in The Rocks area, and
the northern end at Milsons Point in the lower North Shore area. There are six
original lanes of road traffic through the main roadway, plus an additional two
lanes of road traffic on its eastern side, using lanes that were formally tram
tracks. Adjacent to the road traffic, a path for pedestrian use runs along the
eastern side of the bridge, whilst a dedicated path for bicycle use only runs
along the western side. Finally, between the main roadway and the western bicycle
path are two lanes used for railway tracks, servicing the T1 North Shore Line for
Sydney Trains.
The main roadway across the bridge is known as the Bradfield Highway and is about
2.4 km (1.5 mi) long, making it one of the shortest highways in Australia.
Collect your Sydney Harbour Bridge Today!
Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.
Basic slot sizes (Meaning your Material Thickness)
1/8 Inch or 1/4 Inch
Metric: Slot Size (Meaning your Material Thickness)
3mm or 6mm
1 x Color Assembly Guide.
Number of Parts:
Finished size of Model at 1/8th or 1/4 Inch
Finished size of Model at 3mm or 6mm
Approximate Size at 6mm
L= 1,372
W = 152
H = 356
Approximate Size at 1/4 inch
L = 54
W = 6
H = 14
Approximate Size of Largest Part
24 X 7 inches
610 X 178 mm
NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
