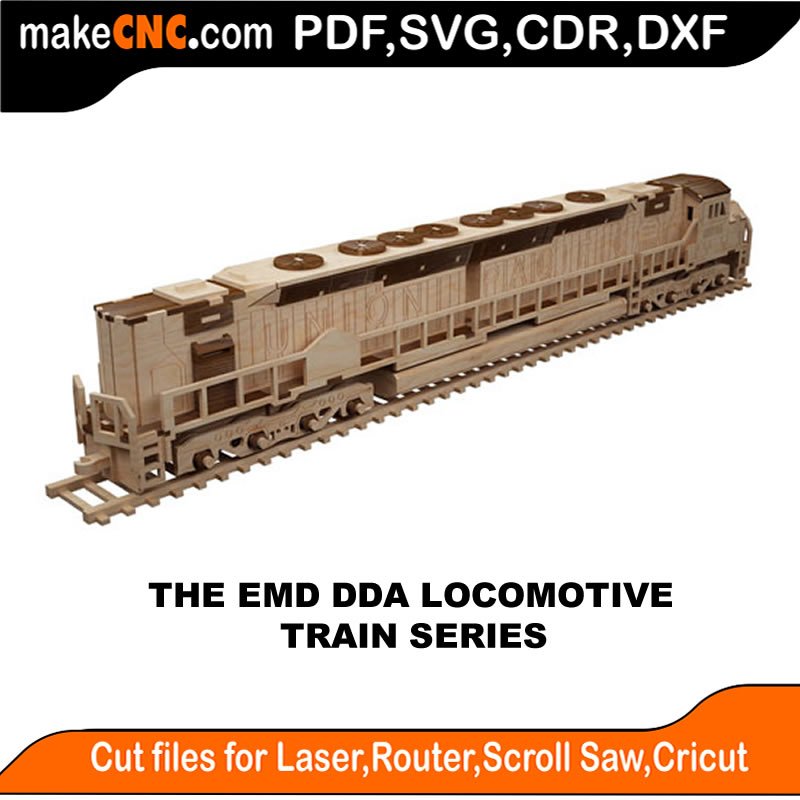

The EMD DDA Locomotive – Train Series : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG
$8.95
The EMD DDA Locomotive – Train Series: Step back into the golden era of rail transport with the EMD DDA Locomotive, a powerhouse of the American railroads. This 3D puzzle captures the robust and powerful design of the EMD DDA, known for its significant role in freight and passenger services across vast distances. Designed as a laser-cut CNC template, this model offers a detailed and authentic assembly experience for train enthusiasts and model builders alike. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, available in two standard sizes, usually 1/8th (.1250) and 3mm, allowing for adjustments to match the thickness of your material. Scaling up or down will adjust the size of the completed locomotive. Please use our Scale Calculator to assist with scaling.
Description
PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT. NO PHYSICAL ITEM WILL BE SHIPPED !
The EMD DDA Locomotive – Train Series
Electro-Motive Diesel, Inc., also referred to as “EMD”, is owned by Caterpillar through its wholly owned subsidiary Progress Rail Services Corporation. The company designs, manufactures and sells diesel-electric locomotives and diesel power engines under the Electro-Motive Diesel brand. EMD offers an extensive range of locomotive products in the rail industry.
Electro-Motive Diesel, Inc. traces its roots to the Electro-Motive Engineering Corporation, founded in 1922. In 1930, General Motors Corporation purchased the Winton Engine Co. and Winton’s primary customer of gasoline engines, Electro-Motive Corporation, a gasoline-electric car manufacturer, combining the two to form GM’s Electro-Motive Division (EMD) on January 1, 1941.
In 2005, GM sold EMD to Greenbriar Equity Group LLC and Berkshire Partners LLC, which formed Electro-Motive Diesel, Inc., to facilitate the purchase. On August 2, 2010, Progress Rail Services Corporation completed the purchase of Electro-Motive Diesel, Inc. from Greenbriar, Berkshire, et al. making Electro-Motive Diesel, Inc. a wholly owned subsidiary of Progress Rail Services Corporation.
EMD’s headquarters, engineering facilities and parts manufacturing operations are physically located in McCook, Illinois. EMD’s final assembly operations were located in London, Ontario, Canada, until the plant’s closure in February 2012. A new assembly site was opened in late 2011 in Muncie, Indiana. EMD operates a traction motor maintenance, rebuild and overhaul facility in San Luis PotosÃ, Mexico.
As of 2008, EMD employed approximately 3,260 people. In 2010 EMD held approximately 30 percent of the market for diesel-electric locomotives in North America.
Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.
Basic slot sizes (Meaning your Material Thickness)
1/8 Inch or 1/4 Inch
Metric: Slot Size (Meaning your Material Thickness)
3mm or 6mm
1 x Color Assembly Guide.
Number of Parts:
Finished size of Model at 1/8th or 1/4 Inch
Finished size of Model at 3mm or 6mm
Approximate Size at 3mm
L= 770
W = 76
H = 109
Approximate Size at 1/8 inch
L = 30.3
W = 3
H = 4.3
Approximate Size of Largest Part
26.7 X 2.75 inches
678 X 70 mm
Approximate Part Number: 185
It is recommended that you use a Laser Machine to enhance the detail for this pattern. However, you can use whatever method you choose to complete your project. You just won’t achieve the detail shown in the pictures of the EMD Locomotive.
NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
