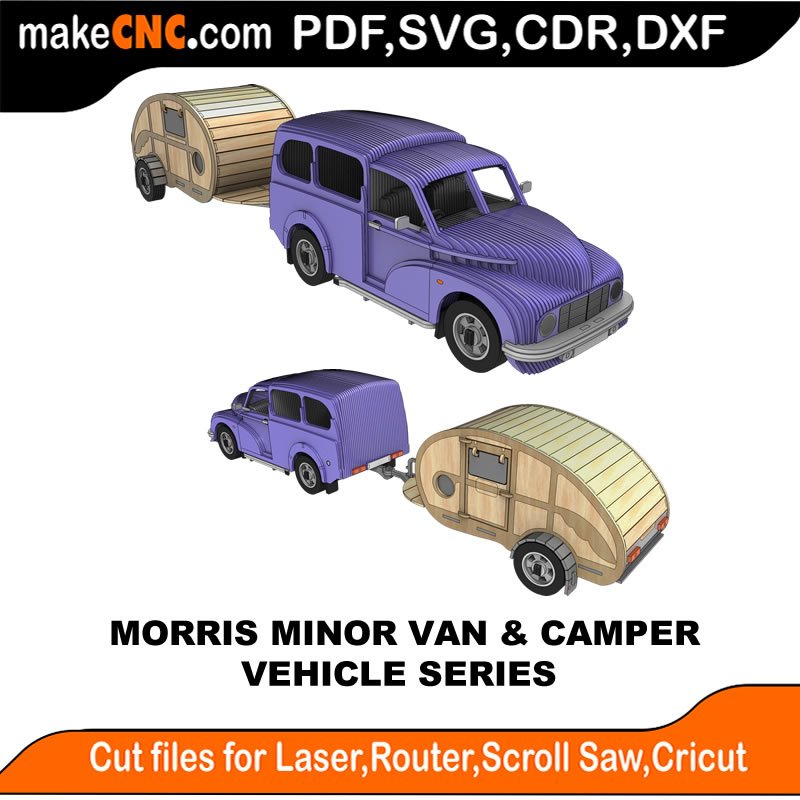

3D puzzle of a custom Morris Minor Van and Camper, precision laser-cut CNC template

Custom Morris Minor Van & Camper – Automobile : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG

$11.95

Custom Morris Minor Van & Camper – Automobile: Dive into the charm of classic British motoring with the Custom Morris Minor Van & Camper. This 3D puzzle meticulously replicates the iconic Morris Minor Van transformed into a quaint camper, a symbol of vintage travel and adventure. Designed as a laser-cut CNC template, this model offers a nostalgic assembly experience for classic car enthusiasts and vintage camper aficionados. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, available in two standard sizes, usually 1/8th (.1250) and 3mm, enabling customization to match the thickness of your material. Scaling up or down will adjust the size of the completed van and camper. Please see our Scale Calculator for assistance with scaling.

SKU: 3018 Categories: , , Tags: , , , , , , , , , , ,

Description

PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT.  NO PHYSICAL ITEM WILL BE SHIPPED !

Morris Minor Van & Camper – Brand New Distinguished Automobile Series

The Morris Minor is a British car that debuted at the Earls Court Motor Show,
London, on 20 September 1948. Designed under the leadership of Alec Issigonis,
more than 1.3 million were manufactured between 1948 and 1972 in three series:
the MM which was 1948 to 1953, the Series II which was 1952 to 1956 and finally
the 1000 series which was 1956 to 1971.
Initially available as a two-door saloon and tourer convertible, the range was
expanded to include a four-door saloon in 1950, a wood-framed estate (the
Traveller) from October 1953 and panel van and pick-up truck variants from May
1953. It was the first British car to sell over one million examples and is
considered a classic example of automotive design, as well as typifying
“Englishness”.
The Minor was conceived in 1941.  Although the Nuffield Organization was heavily
involved in war work and there was a governmental ban on civilian car production,
Morris Motors’ vice chairman, Miles Thomas, wanted to prepare the ground for new
products to be launched as soon as the war was over. Vic Oak, the company’s chief
engineer, had already brought to Thomas’ attention a promising junior engineer,
Alec Issigonis. Issigonis had been employed at Morris since 1935 and specialised
in suspension design but he had frequently impressed Oak with his advanced ideas
about car design in general. Issigonis had come to Oak’s particular attention
with his work on the new Morris Ten, which was in development during 1936/7. This
was the first Morris to use unitary construction and was conceived with
independent front suspension. Issigonis designed a coil-sprung wishbone system
which was later dropped on cost grounds. Although the design would later be used
on the MG Y-type and many other post-war MGs the Morris Ten entered production
with a front beam axle. Despite his brief being to focus on the Ten’s suspension
Issigonis had also drawn up a rack and pinion steering system for the car. Like
his suspension design this was not adopted but would resurface in the post-war
years on the MG Y-type, but these ideas proved that he was the perfect candidate
to lead the design work on a new advanced small car.

Collect your Wonderful makeCNC 3D Puzzle Project today! It’s definitely a Must!

Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.

Basic slot sizes (Meaning your Material Thickness)

1/8 Inch or 1/4 Inch

Metric: Slot Size (Meaning your Material Thickness)

3mm or 6mm

1 x Color Assembly Guide.

Number of Parts:

Finished size of Model at 1/8th or 1/4 Inch

Finished size of Model at 3mm or 6mm

Approximate Size at 3mm
L= 353
W = 145
H = 160
Approximate Size at 1/8 inch
L = 13.9
W = 5.7
H = 6.3
Approximate Size of Largest Part
13.3 X 4.8 inches
338 X 122 mm
Camper
Approximate Size at 3mm
L= 373
W = 135
H = 135
Approximate Size at 1/8 inch
L = 14.7
W = 5.3
H = 5.3
Approximate Size of Largest Part
14.4 X 4.6 inches
366 X 117 mm
Approximate Part Number Total for Both Combined: 193



NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.

Copyright Policy

Respect Intellectual Property: At makeCNC, each of our digital patterns is a result of creativity and hard work. Unauthorized sharing, copying, or redistribution of our products not only violates legal boundaries but seriously impacts our community and ability to continue delivering new designs.

Current Policy: All downloadable products are copyrighted by makeCNC. Redistribution of these files in any format, other than material products made from the files, is strictly prohibited. Assembly PDFs can be sold as printed copies only alongside a finished product from the files.

Personal Use and Fair Use: You are encouraged to use our files to create as many physical items as you desire on your own machines. However, these rights are limited to personal use, not for third-party manufacturing.

Combat Piracy: We lose a significant portion of our annual income to piracy. You can help us by not participating in or encouraging the sharing or selling of our files. If you encounter makeCNC files being misused, please report them to us directly.

Legal Consequences: Engaging in piracy or unauthorized distribution of our files is not only damaging to makeCNC but is also a punishable offense under the law.

Thank You for Your Support: By adhering to this policy, you help makeCNC continue to thrive and innovate. We appreciate your understanding and cooperation.

Special Copyright Statement: When you purchase this makeCNC pattern you are agreeing to the Copyright Terms Below.
