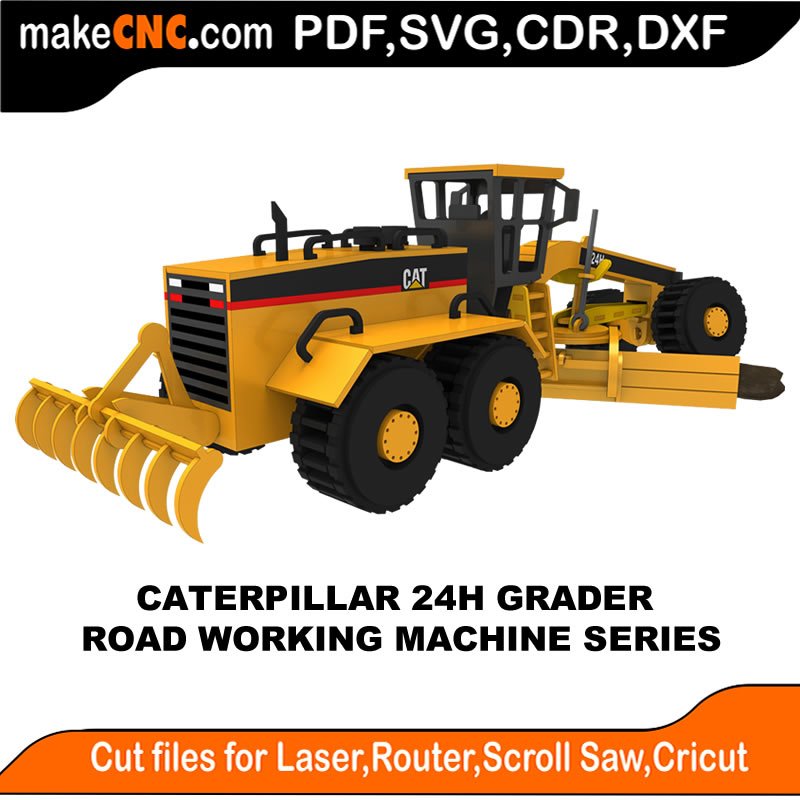

Caterpillar 24H Grader – Road Working Machine Series : 3D Puzzle, Laser Cut, Scroll Saw, CNC Router, Template, Pattern DXF, CDR, SVG
$9.95
The Caterpillar 24H Grader – Road Working Machine Series: Dive into the detailed world of road construction with the Caterpillar 24H Grader, a vital tool for precise grading and leveling. This 3D puzzle captures the engineering precision of the 24H Grader, known for its robust design and efficiency in creating smooth surfaces for infrastructure projects. Designed as a laser-cut CNC template, this model provides an intricate assembly experience for fans of road working machinery. Suitable for laser cutters, CNC routers, and plasma cutters. Included file formats are SVG, DXF, CDR, PDF. The design is scalable, offered in two standard sizes, usually 1/8th (.1250) and 3mm, enabling adjustments to match the thickness of your material. Scaling up or down will modify the size of the completed grader. Refer to our Scale Calculator for assistance with scaling.
Description
PLEASE NOTE THIS IS A DIGITAL DOWNLOAD PRODUCT. NO PHYSICAL ITEM WILL BE SHIPPED !
** This Pattern is not easy for beginners! You may want to become more proficient at CNC before attempting this pattern! This is a High-Quality, Very Challenging, Premium 3D Pattern created to Stimulate your Mind and Imagination! **
Caterpillar 24H Grader – Road Working Machine Series
The 24H has been the industry standard in
mining applications. The 24M continues this tradition, incorporating revolutionary, customer-driven enhancements by Improving ease of operation and operator training time, by being the Best-in-class operator station, by Increasing productivity, by Improving availability and by decreasing maintenance time and Building on a legacy of superior quality.
The grader design has not changed significantly in the past 50 years. There have been incremental advances – articulation, electronic engine control – but the basic layout of the machine, especially the operator control system, has seen few modifications.
Cat Graders have been the world-wide market leader for decades. Caterpillar recognized the impact of making changes to the H-Series machines.
Every modification had to be carefully considered.
With emission regulations forcing updates and competitors beginning to close the performance gap, Caterpillar began research for its next-generation motor graders.
Collect your Heavy Machine Patterns today! It’s definitely a Must!
Hello and Thanks for shopping with makeCNC!
These 3D Puzzles are a Downloadable Product that have been Designed ready to cut on any CNC router or CNC Laser Machine.
They are supplied as ready-to-cut vector files in several formats for CNC Routers, Lasers, Plasma, Die Cutters and Scroll Saws are just of the few ways you can use these Patterns.
Basic slot sizes (Meaning your Material Thickness)
1/8 Inch or 1/4 Inch
Metric: Slot Size (Meaning your Material Thickness)
3mm or 6mm
1 x Color Assembly Guide.
Number of Parts:
Finished size of Model at 1/8th or 1/4 Inch
Finished size of Model at 3mm or 6mm
Approximate Size at 3mm
L= 770
W = 262
H = 287
Approximate Size at 1/8 inch
L = 30.3
W = 10.3
H = 11.3
Approximate Size of Largest Part
19 X 3.5 inches
483 X 89 mm
Approximate Part Number: 326
NOTE: Our 3D Puzzles can be built in different thicknesses.
Example: 1/8″ uses 1/8″ Plywood…1/4″ uses 1/4″ Plywood, etc.
As a rule, although the slots are set to fit the same sized tool, most
people will use a smaller bit size when cutting on a CNC Router.
